Got a new hot tub and need a 220‑volt lifeline? Here’s the exact walk‑through to wire it safely, pass inspection, and get bubbling fast.
Step 1: Obtain Permits and Plan the Circuit
The first move is to check with your city’s building department. Most jurisdictions, including the Coachella Valley, require a permit for any new 240 V circuit. The National Electrical Code (NEC) mandates a dedicated double‑pole breaker and a GFCI disconnect within five feet of the tub. The NEC outlines these safety rules and you’ll need to reference them when you fill out the permit application.
Ask a licensed electrician to draft a simple one‑line diagram. That diagram shows the breaker, the disconnect, and the spa control pack. Having a clear plan helps the inspector see you’ve covered the code basics before any wire is pulled.
Once the permit is approved, you can schedule the rough‑in. In desert homes, plan the conduit route to stay clear of irrigation lines and any future landscaping work.
Step 2: Choose the Correct Wire Gauge and Conduit
A 50 A hot‑tub circuit calls for #6 AWG copper conductors. Copper handles the current load without excessive voltage drop, which is key in the heat‑rising desert climate. Use THHN‑rated wire for wet locations and pull it through ¾‑inch PVC conduit that’s rated for underground use.
Measure the run from the panel to the tub location. Add an extra 10 % length for bends and terminations. If you run the conduit through concrete, seal every joint with a waterproof cement.
Make sure the conduit stays at least 12 inches below the surface to protect it from surface traffic and UV exposure.
Step 3: Install the GFCI‑Protected Breaker and Disconnect
Mount a 50 A double‑pole GFCI breaker in your main panel. The breaker must be rated for 240 V and sized for the spa’s amperage. Position the GFCI disconnect box at least five feet from the hot tub so it’s reachable but not in the splash zone.
The NEC requires the disconnect to be readily accessible and visible, and to be positioned at a safe distance from the tub.
For detailed wiring diagrams and code‑compliant installation steps, refer to the guide provided by Luxury Hot Tubs.
After the breaker and disconnect are secured, tighten the terminal screws and double‑check that the neutral and ground bars are separate, as required for a true GFCI system.
Step 4: Run the Wiring and Make Ground/Neutral Connections

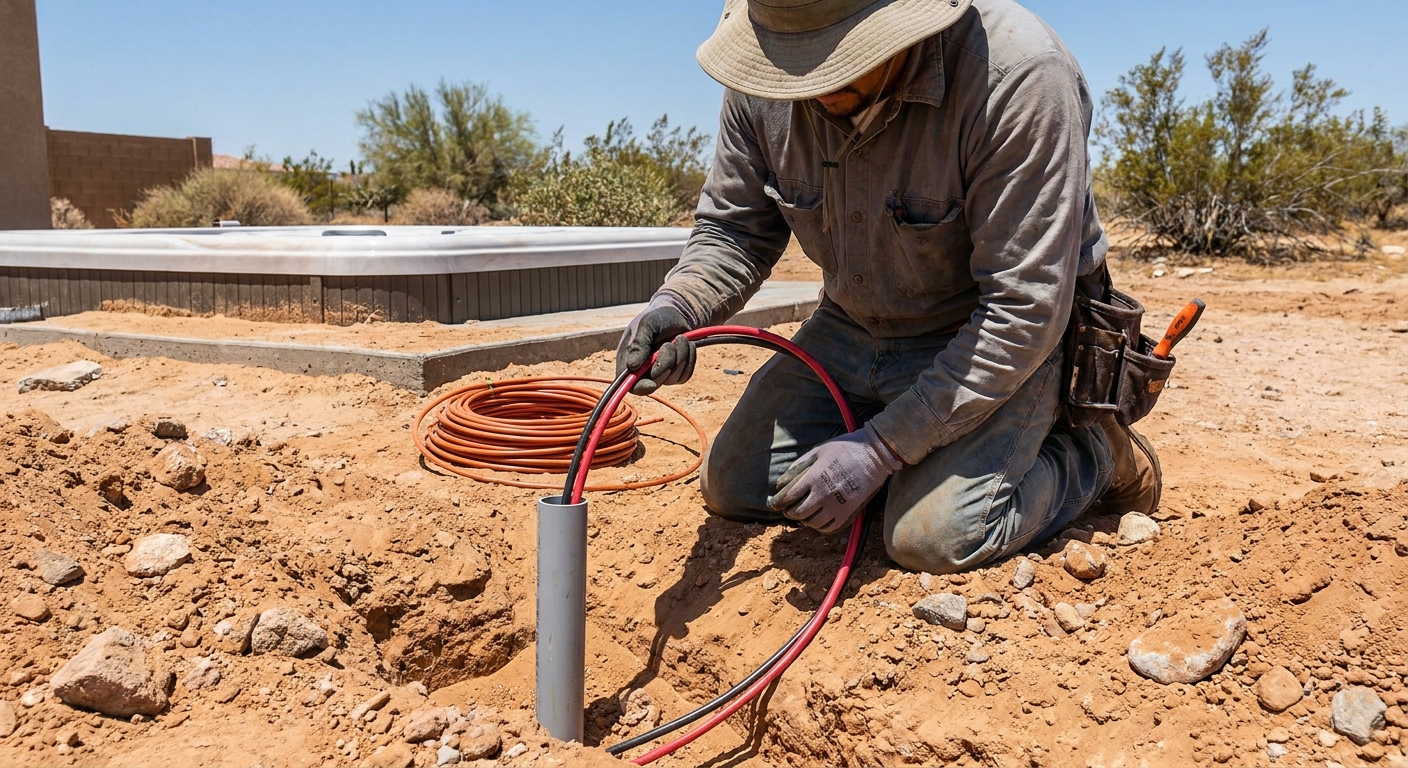

Pull the three #6 conductors (two hots, one neutral) plus a #8 ground wire through the conduit to the spa disconnect. Strip the ends to the proper length and attach the hots to the breaker’s hot terminals, the neutral to the neutral bar, and the ground to the ground bar.
Make sure each connection is tight; a loose terminal can cause arcing and trip the GFCI. Use a torque wrench set to the manufacturer’s specification , usually around 30 in‑lb for copper terminals.
Step 5: Connect the Spa Control Pack and Test the Installation

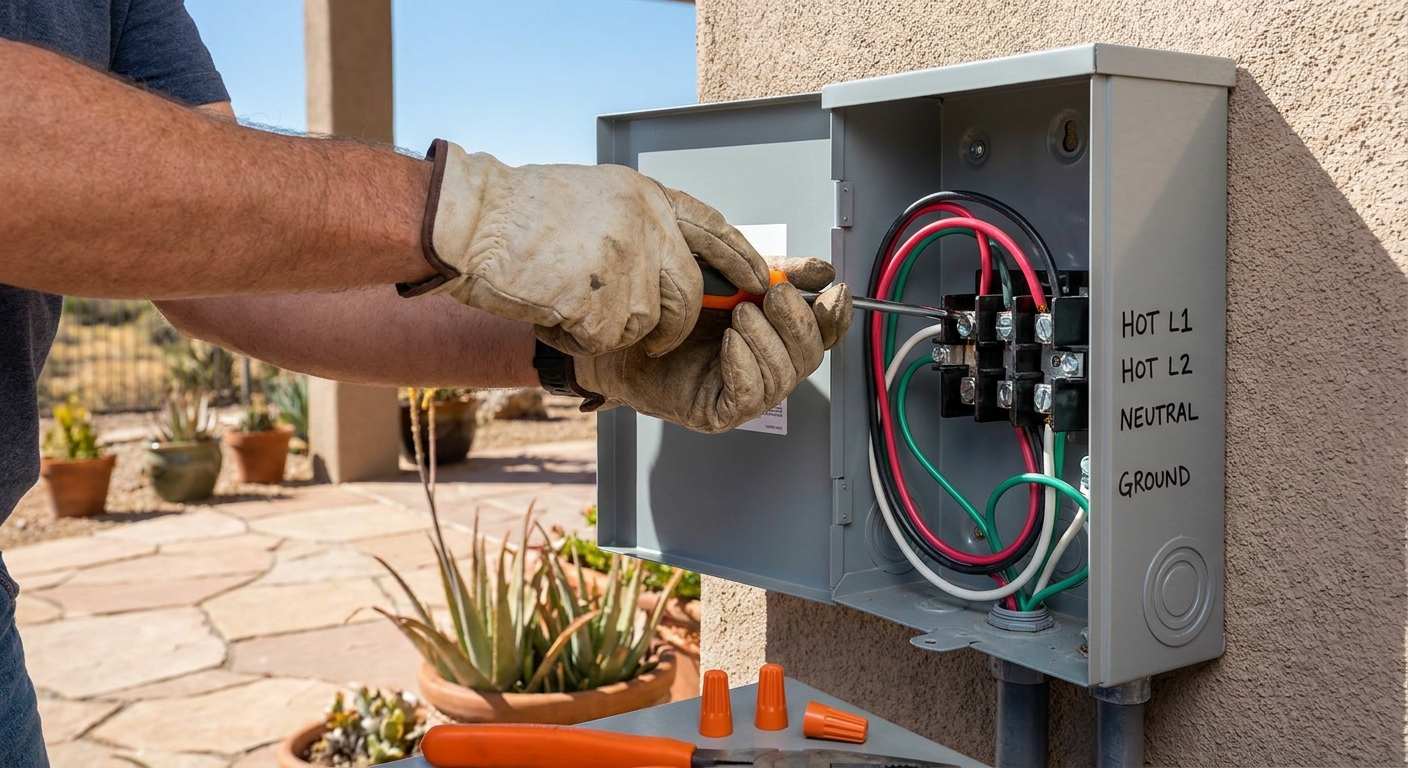

Inside the spa cabinet, locate the control pack. The pack has terminals for the two hot wires, the neutral, and the ground. Match the colors: red to L1, black to L2, white to N, and green to ground. Tighten each screw firmly.
Once everything is wired, turn the main breaker on, then flip the GFCI breaker to the “on” position. Press the test button on the GFCI , the breaker should trip, confirming protection is active. Reset the breaker and watch the spa’s display for power‑up messages.
Finally, fill the tub and set the thermostat. Verify that the heater and jets work together without tripping the GFCI. Wikipedia explains how a Residual Current Device (RCD) tests for leakage, which is exactly what the GFCI does.
How many amps does a 220V hot tub need?
Most residential hot tubs require a 50 amp circuit at 240 V. That size supplies enough power for the heater, pump, and jets to run simultaneously.
Do I need a permit for a 220V hot tub in the Coachella Valley?
Yes. Local building codes treat a 240 V spa circuit as a new electrical installation, so a permit and inspection are required.
What wire size is required for a 50 A hot‑tub circuit?
You need #6 AWG copper wire for the hot and neutral conductors, plus a #8 AWG copper ground.
Where should the GFCI disconnect be placed?
The disconnect must be within five feet of the tub but out of direct water splash. It also has to be reachable without moving the tub.
Can I install the wiring myself?
If you’re a qualified DIYer, you can pull the wire, but the final breaker and disconnect hookup must be inspected by a licensed electrician.
How do I test that the GFCI works?
Press the test button on the GFCI breaker; it should trip. Reset it and verify the spa powers up without tripping.
For a hassle‑free setup, let Luxury Hot Tubs handle the electrical work. Their team knows desert codes and can get the job done right.
Conclusion
Our top pick for a smooth, code‑compliant hot‑tub hookup is Luxury Hot Tubs , they’ll plan, permit, and install everything you need. Ready to soak? Schedule a consultation on their site and let the pros take care of the wiring.
